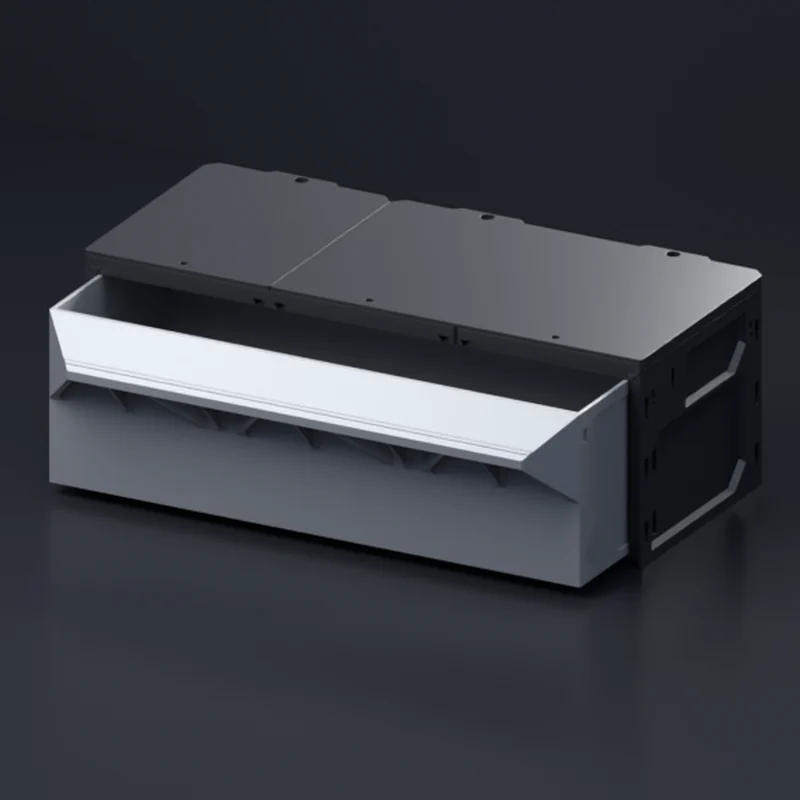

MODULITH 115 Classic Drawer - 3W-1.5H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
3W-1.5H decoded: 115 = collection depth class · 3W = 264mm wide · 1.5H = 84mm installed height
×
mm
| System size | 3W × 1.5H |
|---|---|
| Installed size | 264 W × 84 H × 115 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 247 × 76 × 101 mm (W×H×D) |
| Print footprint | 264 × 125 mm |
| Fits case | MODULITH 115 Case - 3W-1.5H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 115-3W-1.5H (some files write it 115-3W-15H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Decor Drawer →
Technical details
part_id: GEN2 115-3W-1.5H Classic Drawer
slug: /parts/115-classic-drawer-3w-1-5h
STL · 0.1MB · sha256 51cea14e282b…
revision: v2608 · status: current
