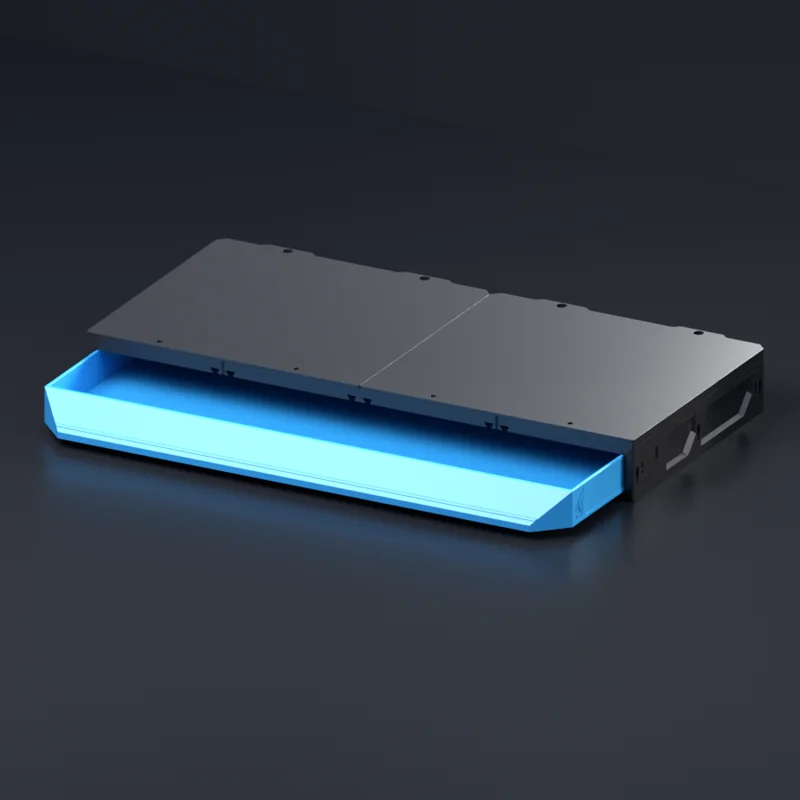

MODULITH 165 Classic Drawer - 4W-0.5H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
4W-0.5H decoded: 165 = collection depth class · 4W = 352mm wide · 0.5H = 28mm installed height
×
mm
| System size | 4W × 0.5H |
|---|---|
| Installed size | 352 W × 28 H × 165 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 335 × 20 × 151 mm (W×H×D) |
| Print footprint | 352 × 175 mm |
| Fits case | MODULITH 165 Case - 4W-0.5H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 165-4W-0.5H (some files write it 165-4W-05H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
