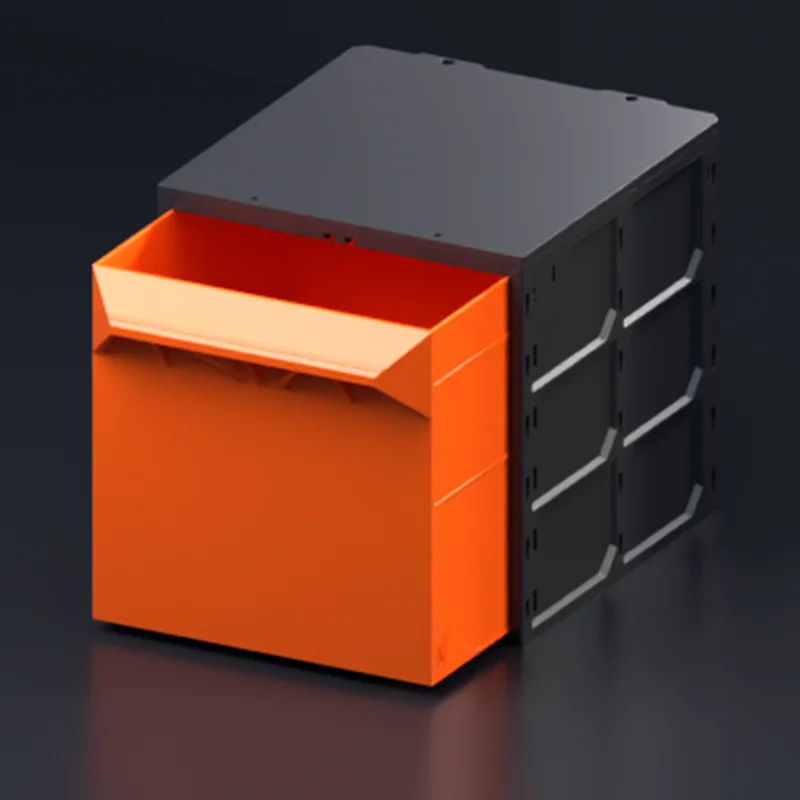

MODULITH 185 Classic Drawer - 2W-3H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
2W-3H decoded: 185 = collection depth class · 2W = 176mm wide · 3H = 168mm installed height
×
mm
| System size | 2W × 3H |
|---|---|
| Installed size | 176 W × 168 H × 185 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 159 × 160 × 171 mm (W×H×D) |
| Print footprint | 176 × 195 mm |
| Fits case | MODULITH 185 Case - 2W-3H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 185-2W-3H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Decor Drawer →
Technical details
part_id: GEN2 185-2W-3H Classic Drawer
slug: /parts/185-classic-drawer-2w-3h
STL · 0.1MB · sha256 d7b1b5bca653…
revision: v2608 · status: current
slug: /parts/185-classic-drawer-2w-3h
STL · 0.1MB · sha256 d7b1b5bca653…
revision: v2608 · status: current
