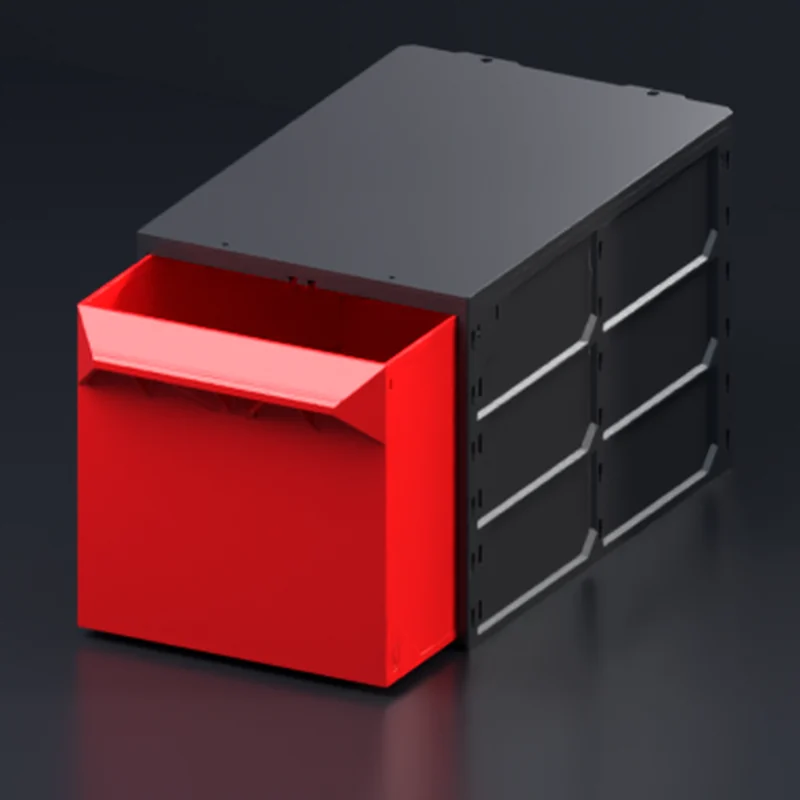

MODULITH 270 Classic Drawer - 2W-3H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
2W-3H decoded: 270 = collection depth class · 2W = 176mm wide · 3H = 168mm installed height
×
mm
| System size | 2W × 3H |
|---|---|
| Installed size | 176 W × 168 H × 270 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 159 × 160 × 256 mm (W×H×D) |
| Print footprint | 176 × 280 mm |
| Fits case | MODULITH 270 Case - 2W-3H |
| Connects to | MODULITH Rail · QuickLock |
