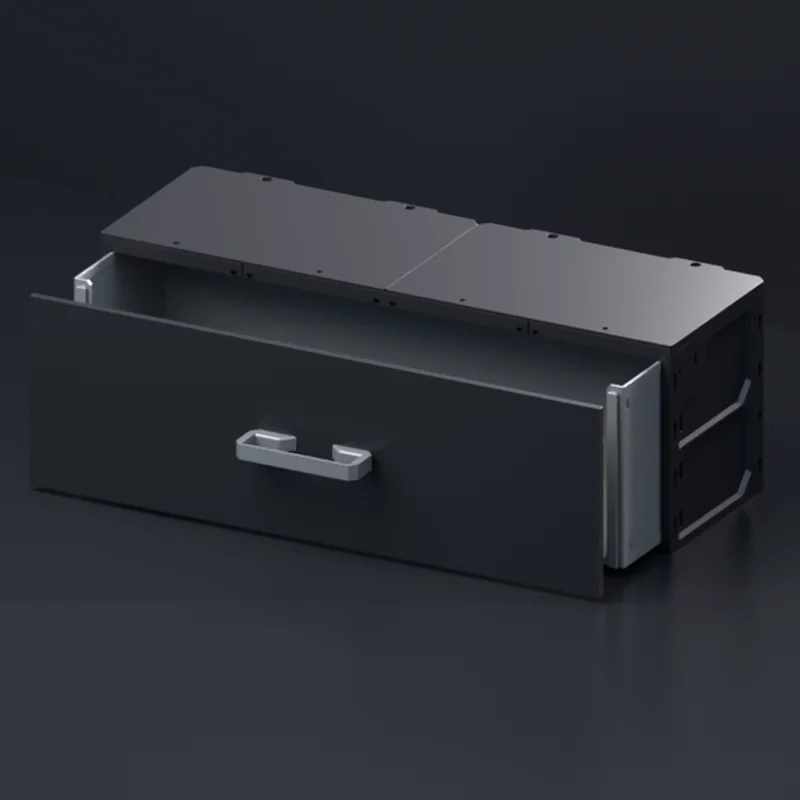

MODULITH 115 Decor Drawer - 4W-2H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
4W-2H decoded: 115 = collection depth class · 4W = 352mm wide · 2H = 112mm installed height
×
mm
| System size | 4W × 2H |
|---|---|
| Installed size | 352 W × 112 H × 115 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 335 × 104 × 101 mm (W×H×D) |
| Print footprint | 352 × 115 mm |
| Fits case | MODULITH 115 Case - 4W-2H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 115-4W-2H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Classic Drawer →
Technical details
part_id: GEN2 115-4W-2H Decor Drawer
slug: /parts/115-decor-drawer-4w-2h
STL · 0.1MB · sha256 129d59bd7adc…
revision: v2608 · status: current
