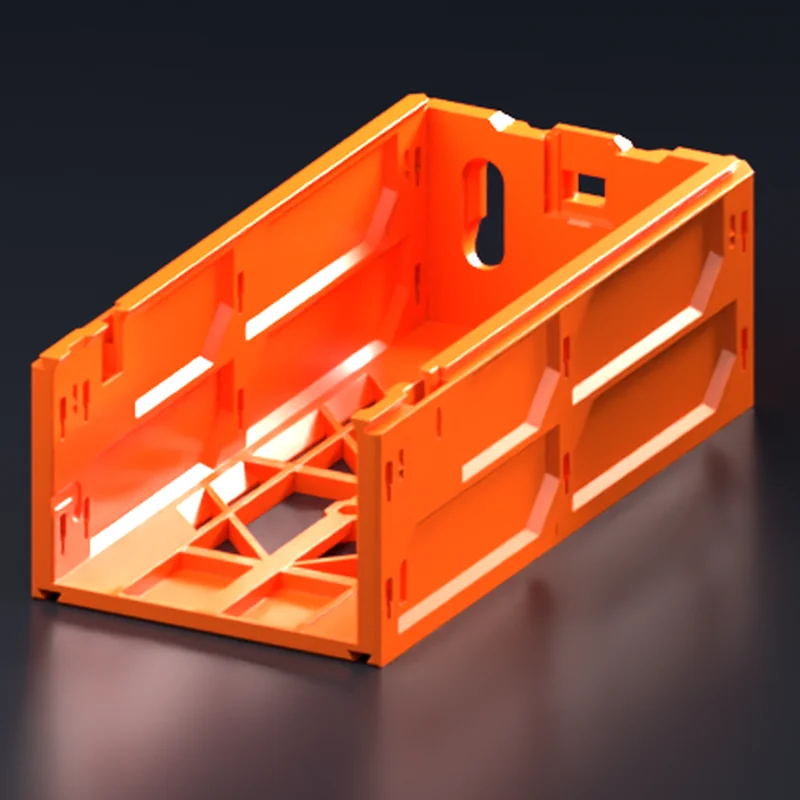

MODULITH 185 Case - 1W-1H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
1W-1H decoded: 185 = collection depth class · 1W = 88mm wide · 1H = 56mm installed height
×
mm
| System size | 1W × 1H |
|---|---|
| Installed size | 88 W × 56 H × 185 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) depth | 171 mm |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 185-1W-1H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Technical details
part_id: GEN2 185 Case - 1W-1H
slug: /parts/185-case-1w-1h
STL · 0.5MB · sha256 18394db51069…
printed envelope height: 59 mm (installed 56 + 3 dovetail)
revision: v2608 · status: current
