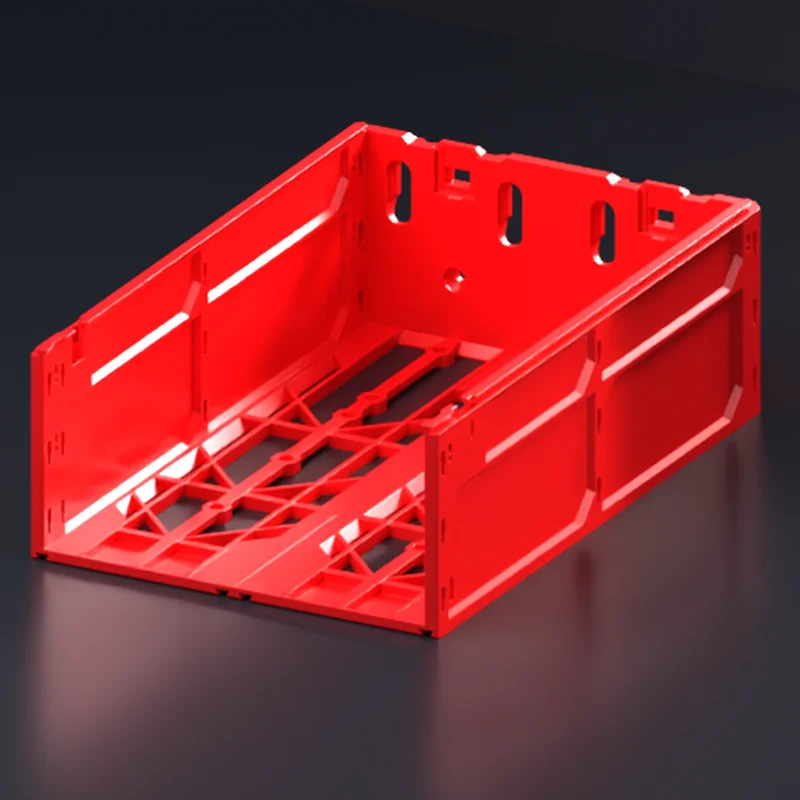

MODULITH 270 Case - 2W-1.5H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
2W-1.5H decoded: 270 = collection depth class · 2W = 176mm wide · 1.5H = 84mm installed height
×
mm
| System size | 2W × 1.5H |
|---|---|
| Installed size | 176 W × 84 H × 270 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) depth | 256 mm |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 270-2W-1.5H (some files write it 270-2W-15H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Technical details
part_id: GEN2 270 Case - 2W-1.5H
slug: /parts/270-case-2w-1-5h
STL · 0.8MB · sha256 a269b96d2f0c…
printed envelope height: 87 mm (installed 84 + 3 dovetail)
revision: v2608 · status: current
slug: /parts/270-case-2w-1-5h
STL · 0.8MB · sha256 a269b96d2f0c…
printed envelope height: 87 mm (installed 84 + 3 dovetail)
revision: v2608 · status: current
