MODULITH 270 Decor Drawer - 4W-1H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCOMING SOON

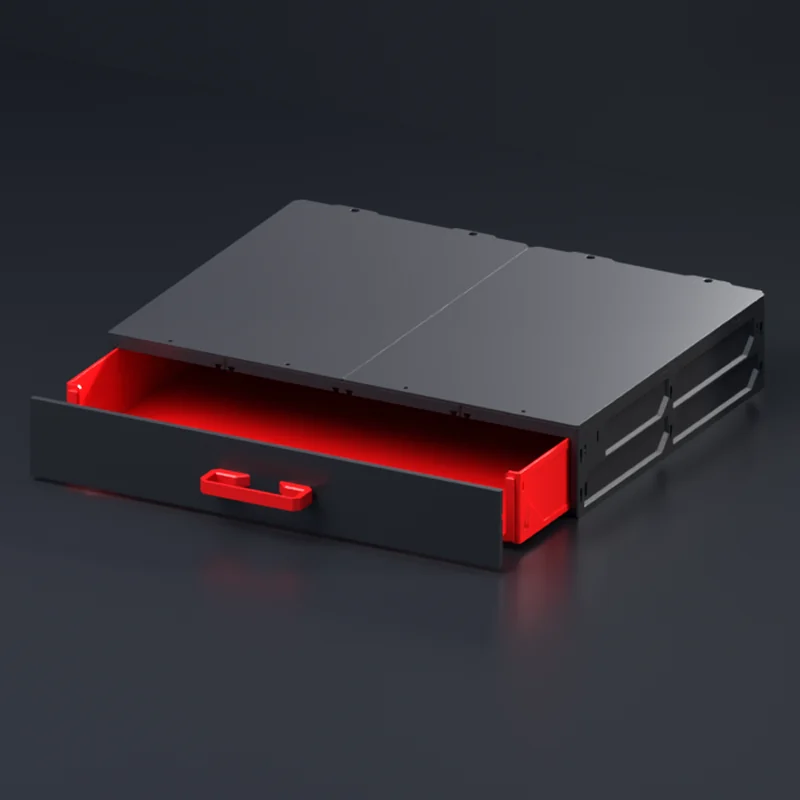

Product render · per-size render lands with the image import pass.
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
4W-1H decoded: 270 = collection depth class · 4W = 352mm wide · 1H = 56mm installed height
×
mm
| System size | 4W × 1H |
|---|---|
| Installed size | 352 W × 56 H × 270 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 335 × 48 × 256 mm (W×H×D) |
| Print footprint | 352 × 270 mm |
| Fits case | MODULITH 270 Case - 4W-1H |
| Connects to | MODULITH Rail · QuickLock |
Coming soon
This size is modeled but not published yet - the rest of the sizes are available now on Printables.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Classic Drawer →
Technical details
part_id: GEN2 270-4W-1H Decor Drawer
slug: /parts/270-decor-drawer-4w-1h
STL · 0.1MB · sha256 94ee52375b88…
revision: v2608 · status: coming-soon
