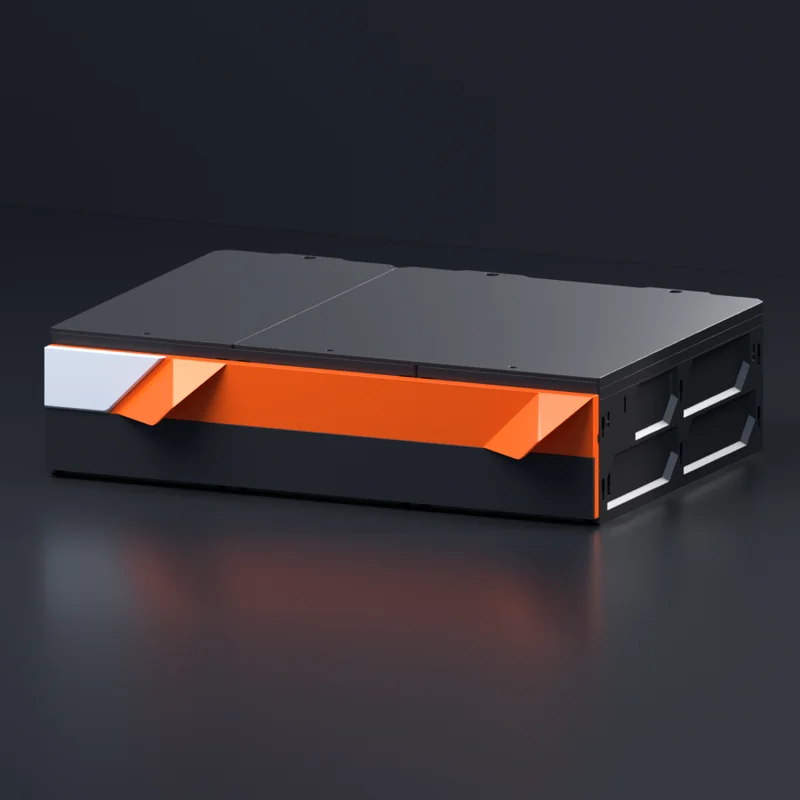

MODULITH EdgeLabel Decor Faceplate - 3W-1H
formerly GEN2CLUB OR PURCHASEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
3W-1H = 264mm on the grid (1W = 88mm)
×
mm
| System size | 3W × 1H |
|---|---|
| Installed size | 264 W × 56 H mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 3W-1H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
assembly lives in the 3D Build Studio.
Technical details
part_id: GEN2 EdgeLabel Decor Faceplate - 3W-1H
slug: /parts/edgelabel-faceplate-3w-1h
library file pending export
revision: v2608 · status: current
