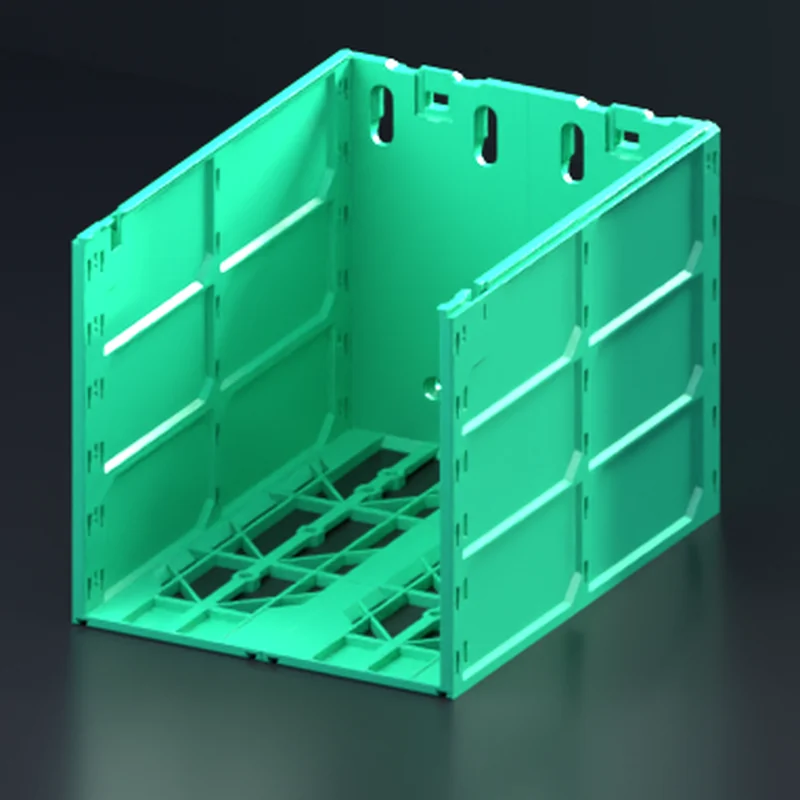

MODULITH 240 Case - 2W-3H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
2W-3H decoded: 240 = collection depth class · 2W = 176mm wide · 3H = 168mm installed height
×
mm
| System size | 2W × 3H |
|---|---|
| Installed size | 176 W × 168 H × 240 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) depth | 226 mm |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 240-2W-3H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Technical details
part_id: GEN2 240 Case - 2W-3H
slug: /parts/240-case-2w-3h
STL · 0.9MB · sha256 d89da84303ba…
printed envelope height: 171 mm (installed 168 + 3 dovetail)
revision: v2608 · status: current
