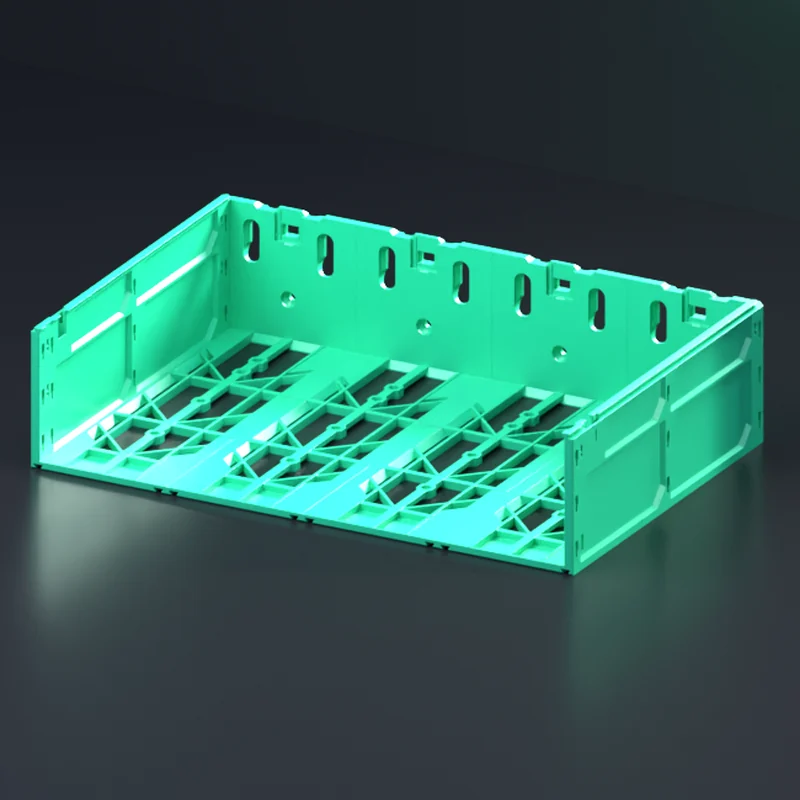

MODULITH 240 Case - 4W-1.5H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
4W-1.5H decoded: 240 = collection depth class · 4W = 352mm wide · 1.5H = 84mm installed height
×
mm
| System size | 4W × 1.5H |
|---|---|
| Installed size | 352 W × 84 H × 240 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) depth | 226 mm |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 18 sizes live in one listing - in it, look for 240-4W-1.5H (some files write it 240-4W-15H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Technical details
part_id: GEN2 240 Case - 4W-1.5H
slug: /parts/240-case-4w-1-5h
STL · 1.4MB · sha256 a1bad2584d20…
printed envelope height: 87 mm (installed 84 + 3 dovetail)
revision: v2608 · status: current
