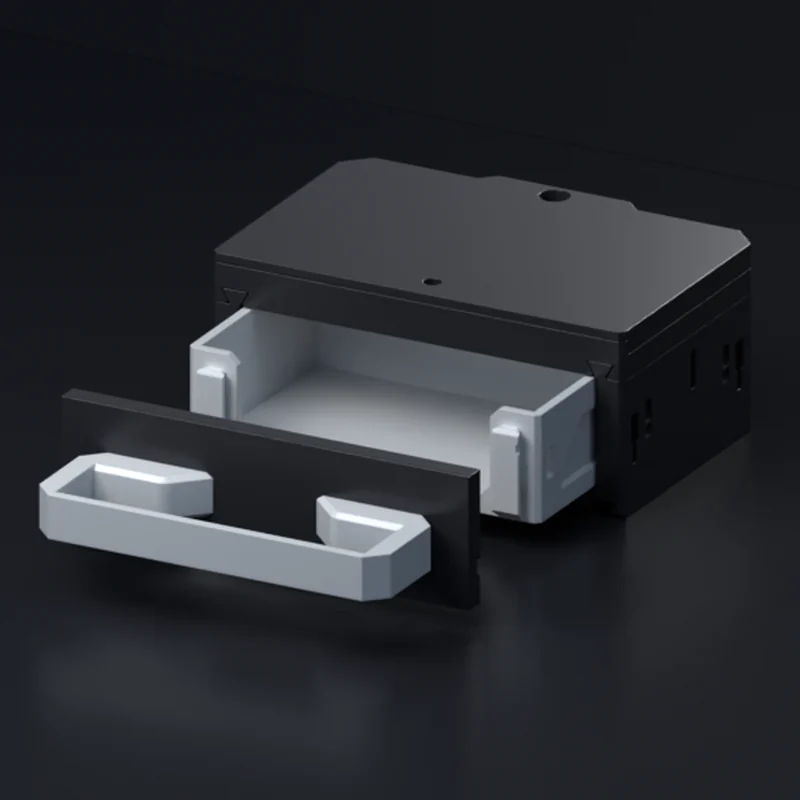

MODULITH 59 Decor Drawer - 1W-0.5H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
1W-0.5H decoded: 59 = collection depth class · 1W = 88mm wide · 0.5H = 28mm installed height
×
mm
| System size | 1W × 0.5H |
|---|---|
| Installed size | 88 W × 28 H × 59 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 71 × 20 × 45 mm (W×H×D) |
| Print footprint | 88 × 59 mm |
| Fits case | MODULITH 59 Case - 1W-0.5H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 4 sizes live in one listing - in it, look for 59-1W-0.5H (some files write it 59-1W-05H) in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Classic Drawer →
Technical details
part_id: GEN2 59-1W-0.5H Decor Drawer
slug: /parts/59-decor-drawer-1w-0-5h
STL · 0.0MB · sha256 9d3c2f21d724…
revision: v2608 · status: current
