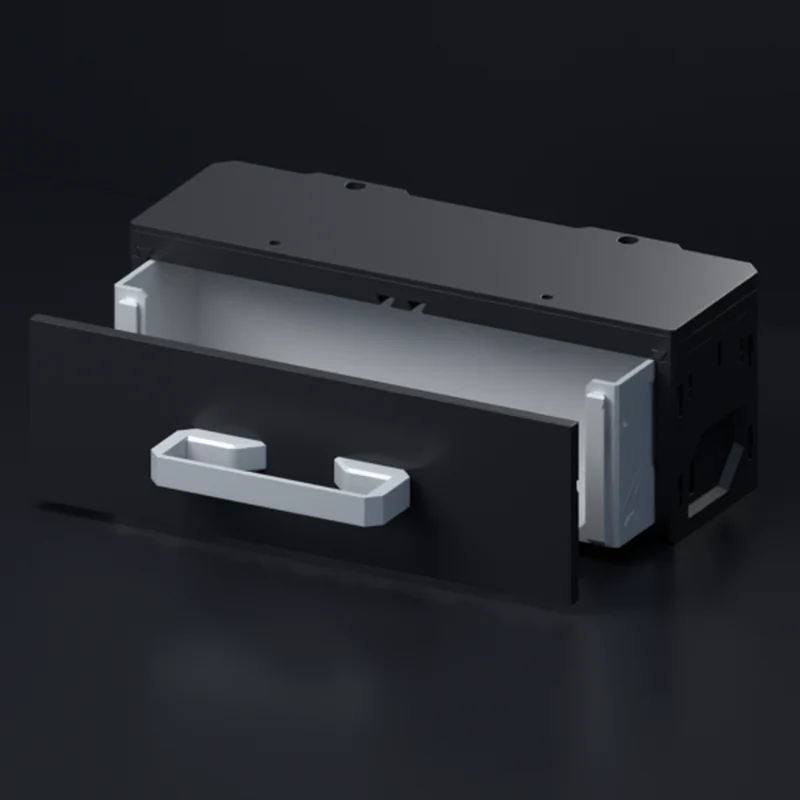

MODULITH 59 Decor Drawer - 2W-1H
formerly GEN2FREEConnects to MODULITH RAILQUICKLOCKCurrent · v2608
Finished-part footprint - removable print aids (helper disks, brims) aren't shown.
2W-1H decoded: 59 = collection depth class · 2W = 176mm wide · 1H = 56mm installed height
×
mm
| System size | 2W × 1H |
|---|---|
| Installed size | 176 W × 56 H × 59 D mmInstalled size is the space the part occupies in an assembled MODULITH build. Some cases are physically taller than their installed height - the 3mm dovetail on top nests into the unit above. |
| Inside (usable) | 159 × 48 × 45 mm (W×H×D) |
| Print footprint | 176 × 59 mm |
| Fits case | MODULITH 59 Case - 2W-1H |
| Connects to | MODULITH Rail · QuickLock |
Get this part
All 4 sizes live in one listing - in it, look for 59-2W-1H in the file list. Same file everywhere it appears; if a kit includes it, either copy works.
Planning a whole build? The Planner lists every file your layout needs.
Related guide: creating labels · assembly lives in the 3D Build Studio. Same size as a Classic Drawer →
Technical details
part_id: GEN2 59-2W-1H Decor Drawer
slug: /parts/59-decor-drawer-2w-1h
STL · 0.1MB · sha256 b10befdc30fa…
revision: v2608 · status: current
